| Characteristic |
Waterproof |
100% |
Fireproof |
Grade A |
| Wind Resistance |
90~110Km/hour |
Seismic Resistance |
Grade 10 |
| Sound Resistance |
>=30dB |
Lifetime |
more than 30 years |
| Roof Live Load |
1.5 kN/m2 |
Floor Live Load |
2.5kN/m2 |
| Details |
Roof |
External roofing |
t75mm fireproof EPS sandwich panel |
| Insulating layer |
Glass fiber cotton |
| Internal ceiling |
t0.3mm Type-831 ceiling plate |
| Both sides |
t75mm fireproof EPS Sandwich plate |
| Floor |
Side walls, front and rear wall panels |
t75mm fireproof EPS or rockwool boardsandwich panel |
| internal partition |
t50mm fireproof EPS or rockwool board sandwich panel |
| middle floor |
Fire resistant Glass magnesium board(asbestos-free) |
| side floor |
Bamboo board |
Specifications
- 37m² Total Area - 5.9m(L) x 6.32m(W) x 2.48m(H)
Standard Inclusions
Construction
- 75mm EPS Galvanised steel sandwich panel walls/ceiling
- Heavy duty galvanised steel frame

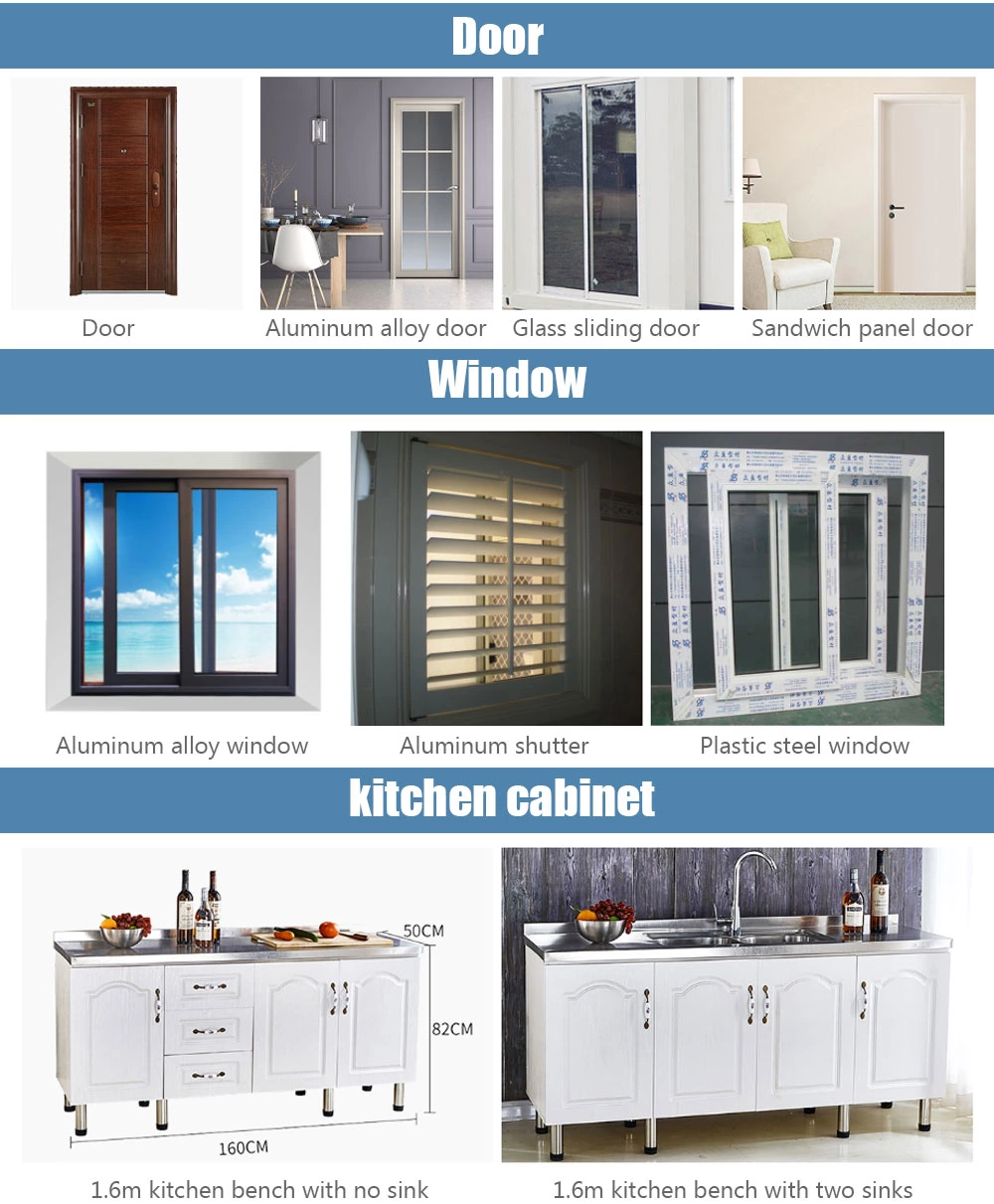

- Robust doors with aluminium frames and double glazed tempered glass windows
- Ceiling and floor skirting board trim with corner trim and capping
- Standard grey PVC flooring
- 18mm fibre cement subfloor board base, pre-fitted to steel frame.
Rooms

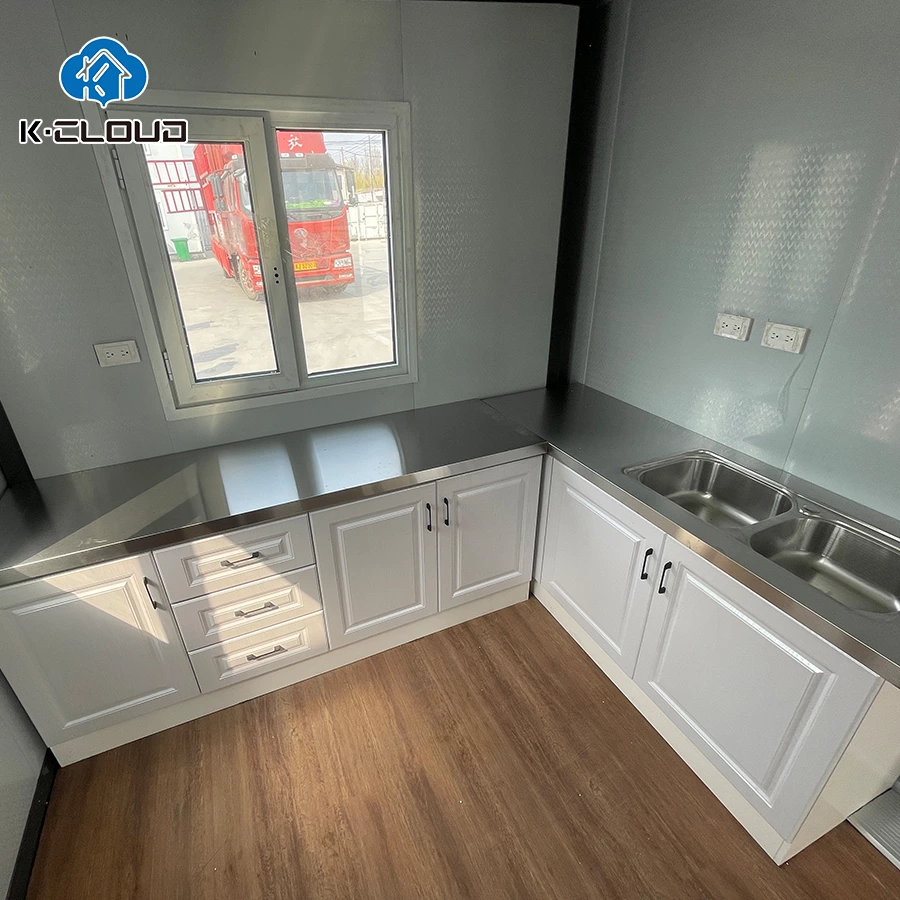

- Kitchen with cabinetry, stone benchtops, cupboards, sink, requires assembly but comes partly assembled

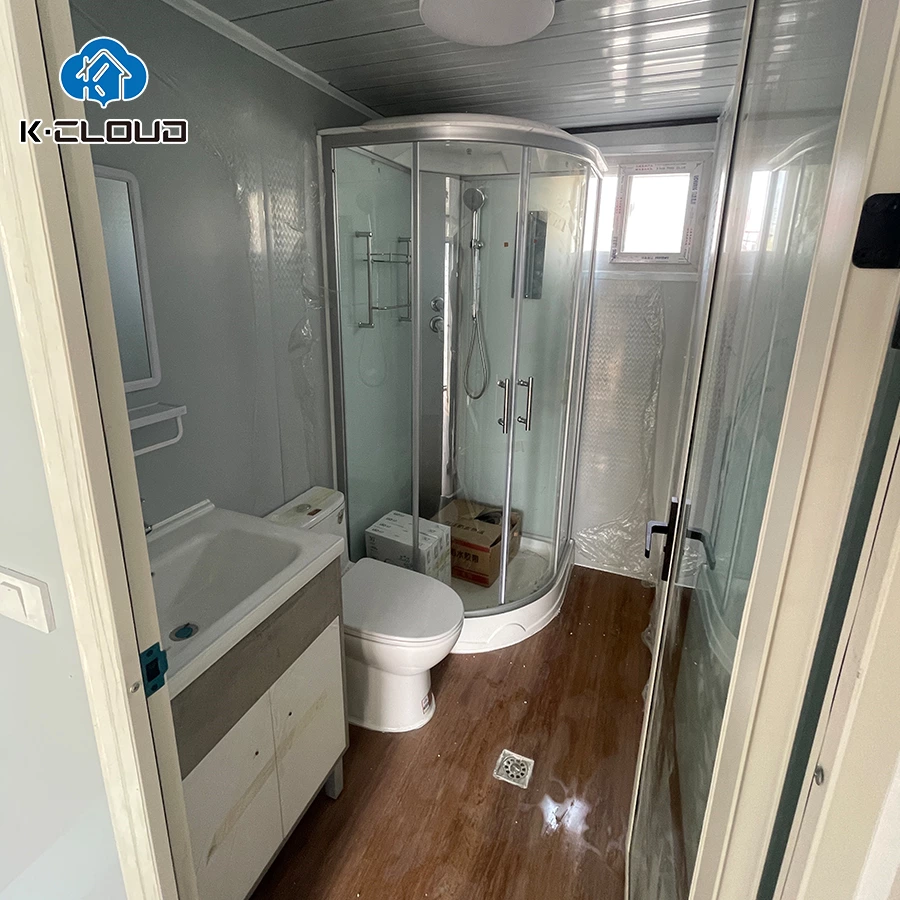

- Bathroom with shower, toilet, washer-basin (basin with space for washer underneath), mirror vanity cupboard, grey marble pattern tiles
- Two Bedrooms, one large and one small, includes interior doors and at least one window per bedroom
Electrical
- Pre-wired outlets, switches and power for bedrooms, bathroom, kitchen and living space
- Dedicated power for kitchen appliances, electric hot water and air conditioning
- Australian standards approved electrical cabling
- 50A rear input with waterproof connector
- Round LED oyster for each room with pre-fitted light switches.
Plumbing
- Pre-fitted hot/cold inlets for kitchen sink, bathroom basin, toilet and shower
- Plumbing fittings, taps, shower and fixtures with WaterMark certification
- Separate drain pipes for waste water and grey water
CERTIFIED ELECTRICIANS AND PLUMBERS TO PERFORM FITOUT
Specifications
- 36m² Total Area - 5.8m(L) x 6.2m(W) x 2.5m(H)

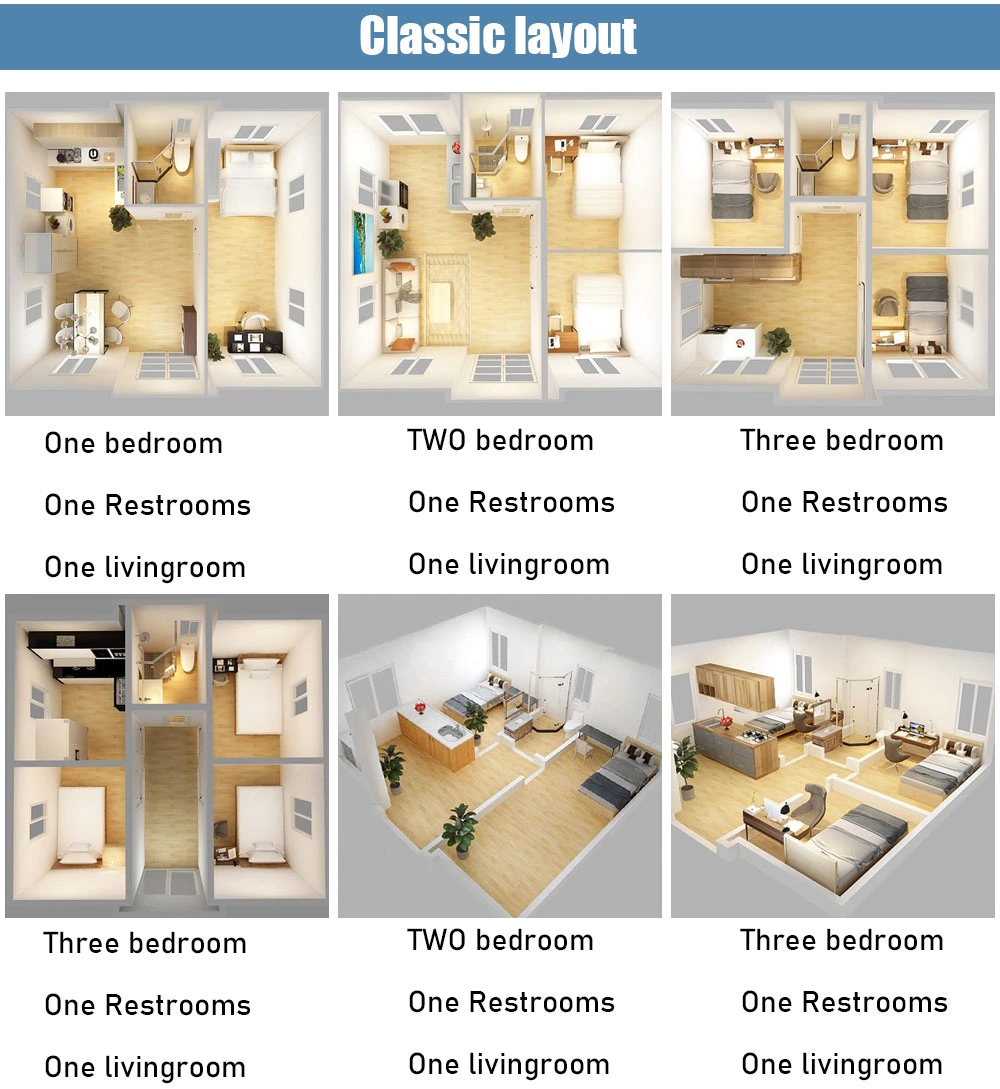

- 17.4m² Living & Kitchen, 3.3m² Bathroom, 7.8m² Bedroom One, 5m² Bedroom Two
Standard Inclusions
Construction
- 75mm EPS Galvanised steel sandwich panel walls/ceiling
- Heavy duty galvanised steel frame
- Robust doors with aluminium frames and double glazed tempered glass windows
- Ceiling and floor skirting board trim with corner trim and capping
- Standard grey PVC flooring
- 18mm fibre cement subfloor board base, pre-fitted to steel frame.
Rooms
- Kitchen with cabinetry, stone benchtops, cupboards, sink, requires assembly but comes partly assembled
- Bathroom with shower, toilet, washer-basin (basin with space for washer underneath), mirror vanity cupboard, grey marble pattern tiles
- Two Bedrooms, one large and one small, includes interior doors and at least one window per bedroom
Electrical
- Pre-wired outlets, switches and power for bedrooms, bathroom, kitchen and living space
- Dedicated power for kitchen appliances, electric hot water and air conditioning
- Australian standards approved electrical cabling
- 50A rear input with waterproof connector
- Round LED oyster for each room with pre-fitted light switches.
Plumbing
- Pre-fitted hot/cold inlets for kitchen sink, bathroom basin, toilet and shower
- Plumbing fittings, taps, shower and fixtures with WaterMark certification
- Separate drain pipes for waste water and grey water
CERTIFIED ELECTRICIANS AND PLUMBERS TO PERFORM FITOUT
Specifications
- 36m² Total Area - 5.8m(L) x 6.2m(W) x 2.5m(H)
- 17.4m² Living & Kitchen, 3.3m² Bathroom, 7.8m² Bedroom One, 5m² Bedroom Two
Standard Inclusions
Construction
- 75mm EPS Galvanised steel sandwich panel walls/ceiling
- Heavy duty galvanised steel frame
- Robust doors with aluminium frames and double glazed tempered glass windows
- Ceiling and floor skirting board trim with corner trim and capping
- Standard grey PVC flooring
- 18mm fibre cement subfloor board base, pre-fitted to steel frame.
Rooms
- Kitchen with cabinetry, stone benchtops, cupboards, sink, requires assembly but comes partly assembled
- Bathroom with shower, toilet, washer-basin (basin with space for washer underneath), mirror vanity cupboard, grey marble pattern tiles
- Two Bedrooms, one large and one small, includes interior doors and at least one window per bedroom
Electrical
- Pre-wired outlets, switches and power for bedrooms, bathroom, kitchen and living space
- Dedicated power for kitchen appliances, electric hot water and air conditioning
- Australian standards approved electrical cabling
- 50A rear input with waterproof connector
- Round LED oyster for each room with pre-fitted light switches.
Plumbing
- Pre-fitted hot/cold inlets for kitchen sink, bathroom basin, toilet and shower
- Plumbing fittings, taps, shower and fixtures with WaterMark certification
- Separate drain pipes for waste water and grey water
CERTIFIED ELECTRICIANS AND PLUMBERS TO PERFORM FITOUT
